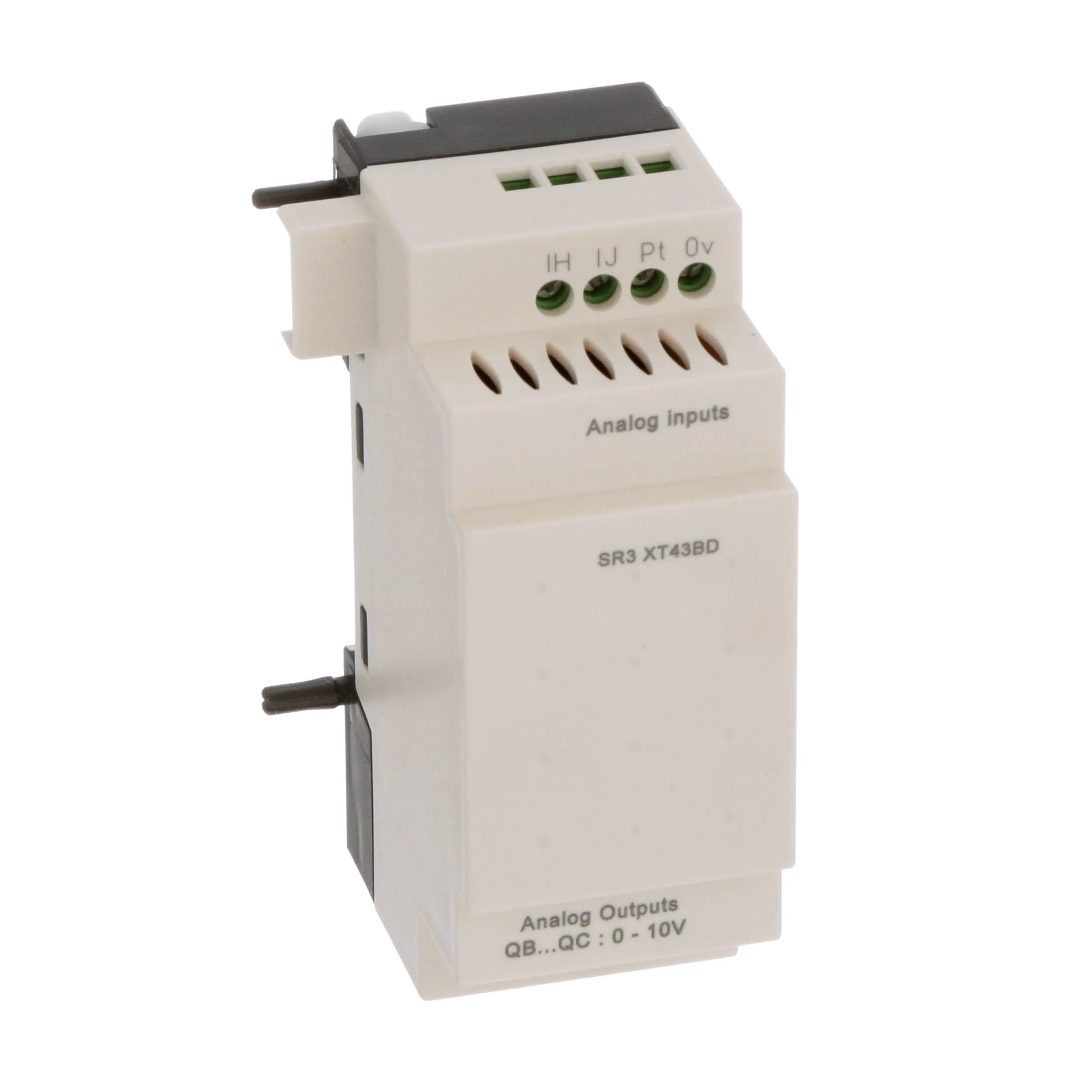

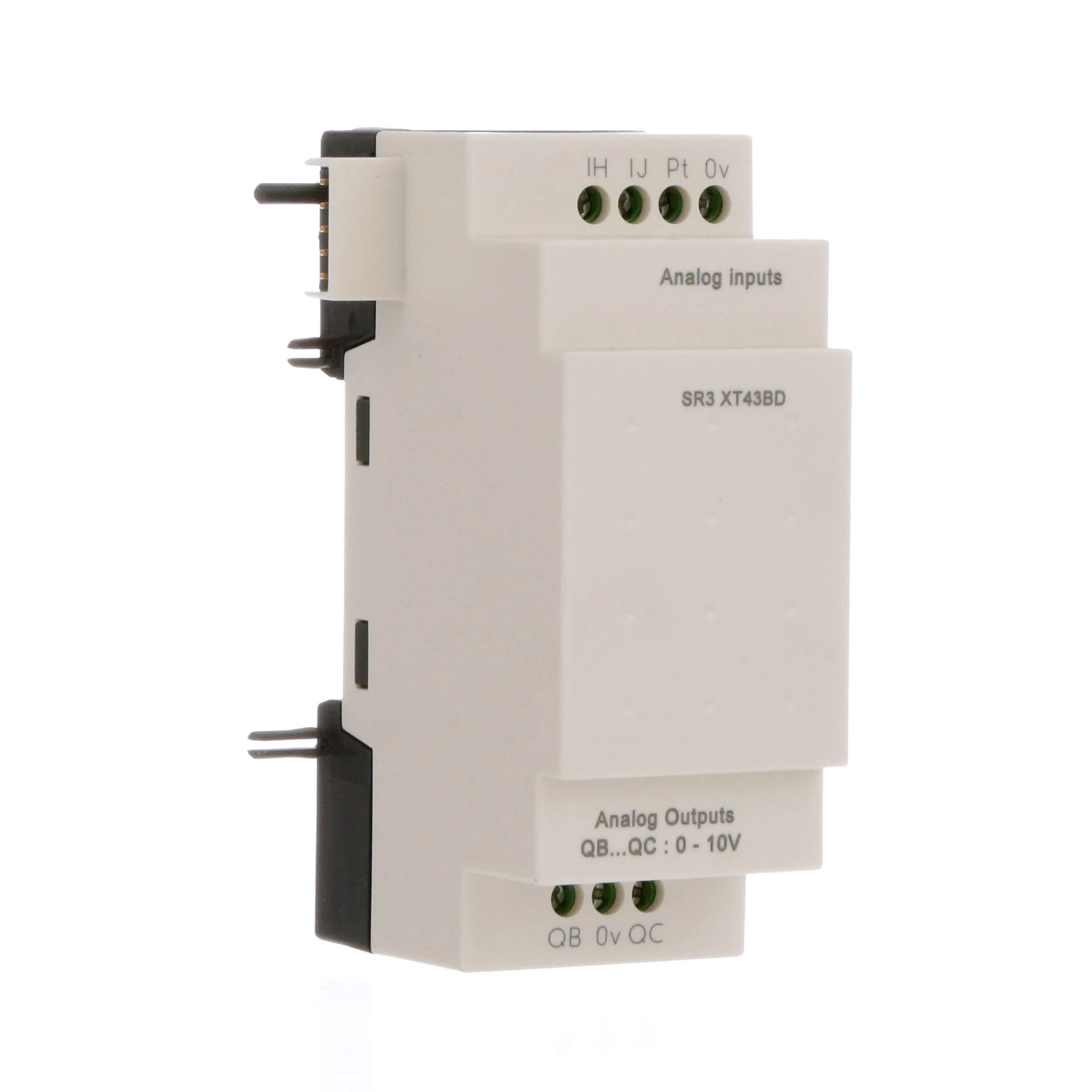

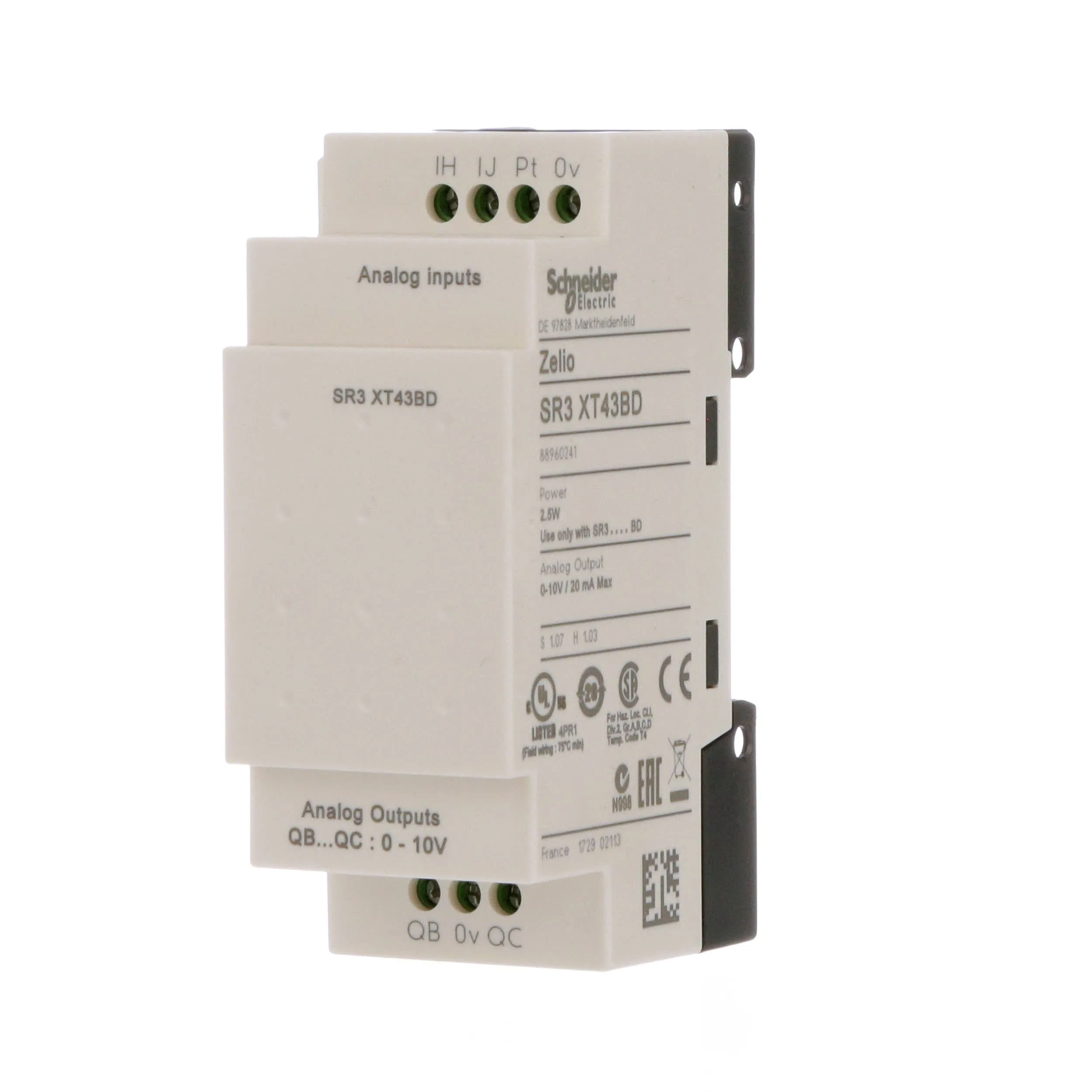

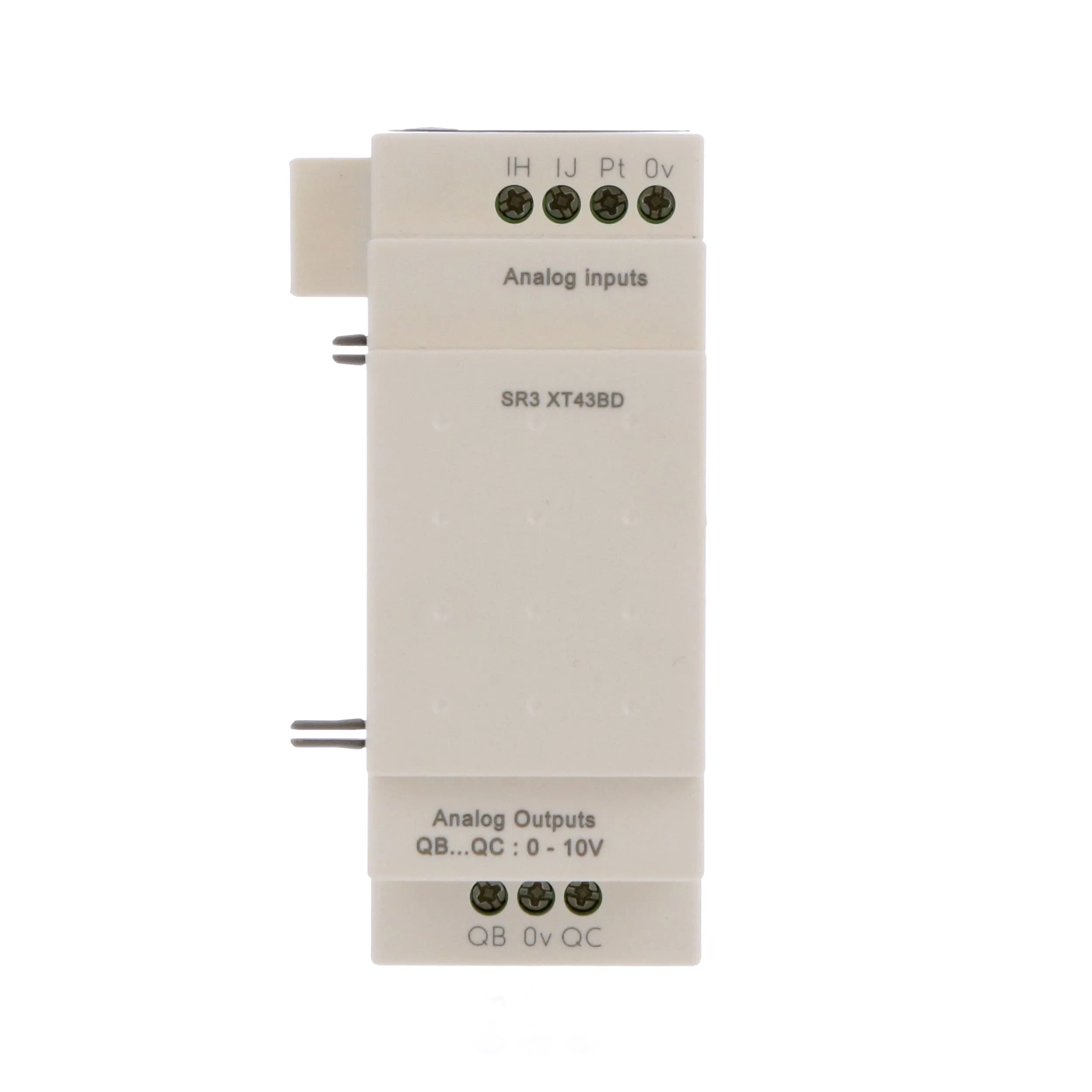

Name: Schneider Electric SR3XT43BD
SKU: 1042862

Product Details ＋

Product Attribute	Attribute Value
Depth	2.756" (70mm)
Dimensions	110 x 35.5 x 70 mm
Family Name	Zelio Logic Family
For Use With	Programmable Relays
Input Type	Analog
Input Voltage	24 VDC
Length	4.331" (110mm)
Mounting Type	DIN Rail
Number of Outputs	2 Output
Number of Ports	4
Output Type	Analog
Primary Type	Analog I/O
Series
Special Features	Modular SR3 Series Controller ; PT100 Analogue Output
Supply Voltage	24 VDC VDC
Termination	Screw
Type	Extension Module
UPC Code	785901557289
Width	1.398" (35.5mm)

Overview

Schneider Electric Zelio Logic SR2/SR3 Series — Smart Relays | For Simple Automation Systems up to 40 I/O's:

Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards..

Features:

Modbus or Ethernet communication extension modules

6, 10 or 14 discrete I/O and 4 analog I/O extension modules

Extreme compactness: up to 26 I/O within 124.6 x 90 x 59 mm

Supply voltage of bases: 12 V DC, 24 V DC, 24 V AC, 100... 240 V AC

Large back-lit LCD display: 4 lines of 18 characters and 1 line of icons, contextual navigation using 6 buttons.

Serial or USB connecting cables for smart relay/PC connection

Connection interface (smart relay/PC) for Bluetooth wireless connection

Zelio Soft 2 intuitive programming software: programming using: function block diagram (FBD): 32 pre-programmed functions, 7 Grafcet functions, 6 logic functions contact language (LADDER): 12 pre-programmed functions

Applications:

Industry: control systems for small machines, decentralised control systems on equipment annexed to large and medium-sized machines

Building/Service sector: lighting management, access control, control and monitoring, heating and air conditioning control
