Product Details ＋

This WiFi relay module, powered by an integrated ESP8266 WiFi module and microcontroller, allows for wireless relay control through a mobile app within a local area network (LAN). It’s ideal for applications requiring control of high-voltage devices remotely, like switching lights or activating systems via a mobile app.

Key Features:

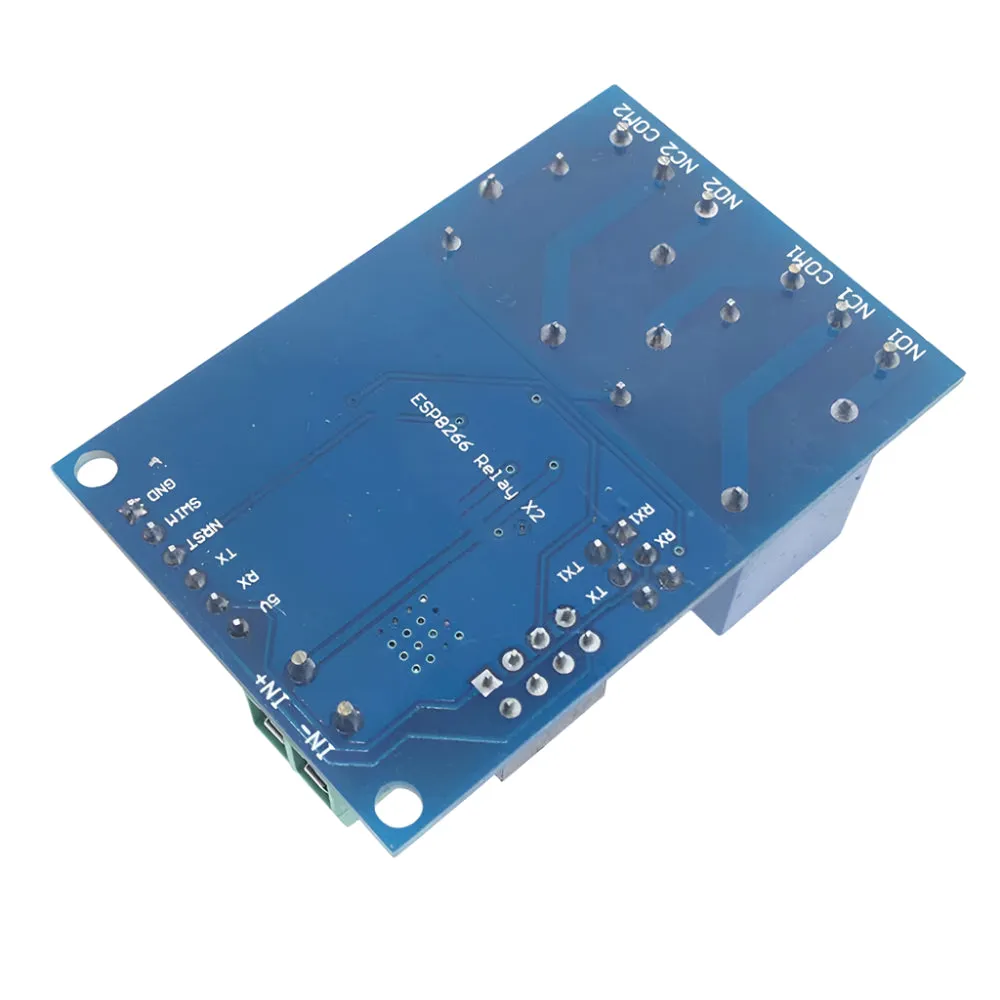

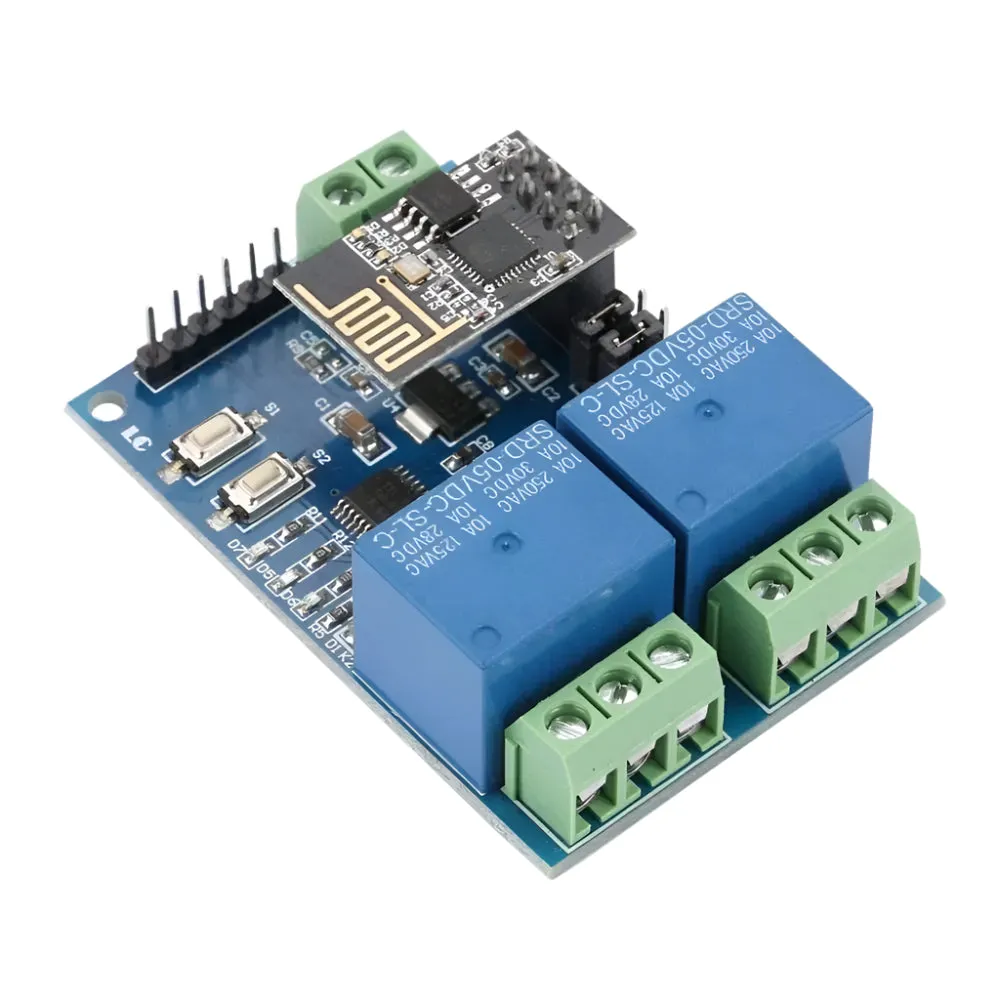

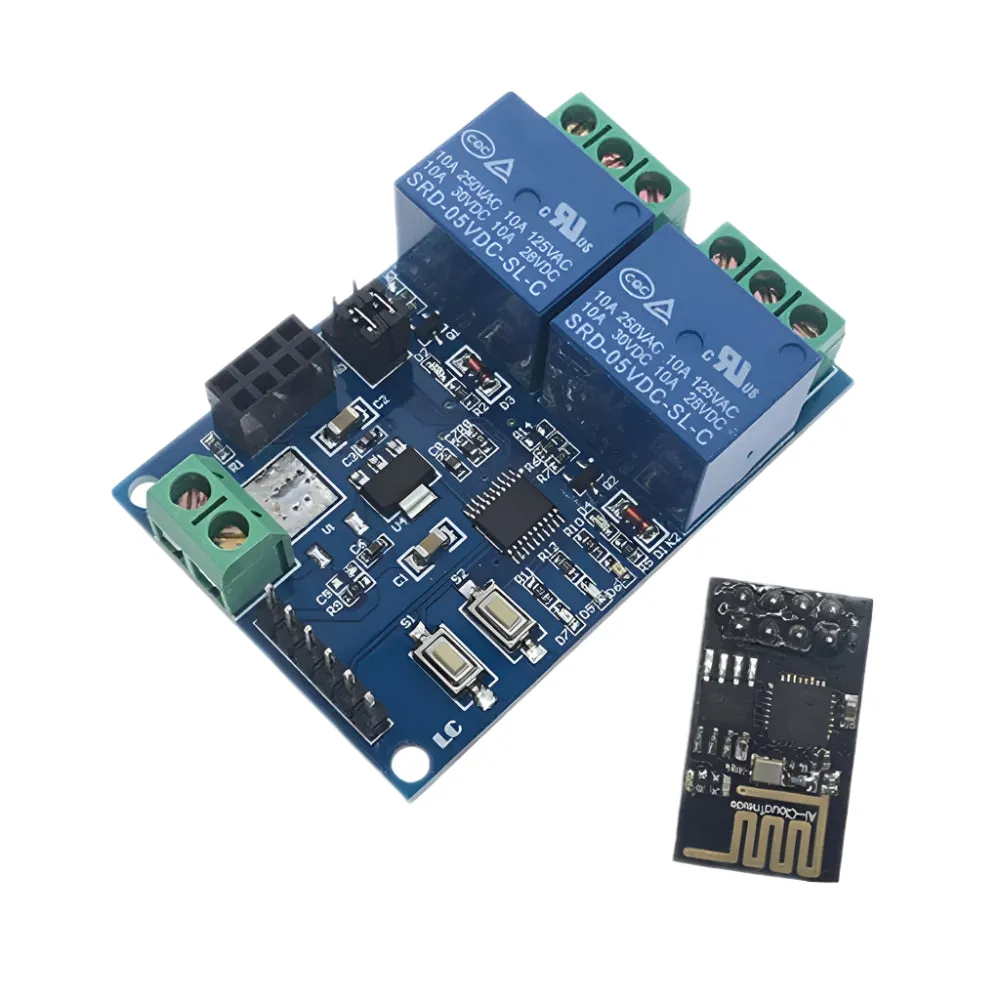

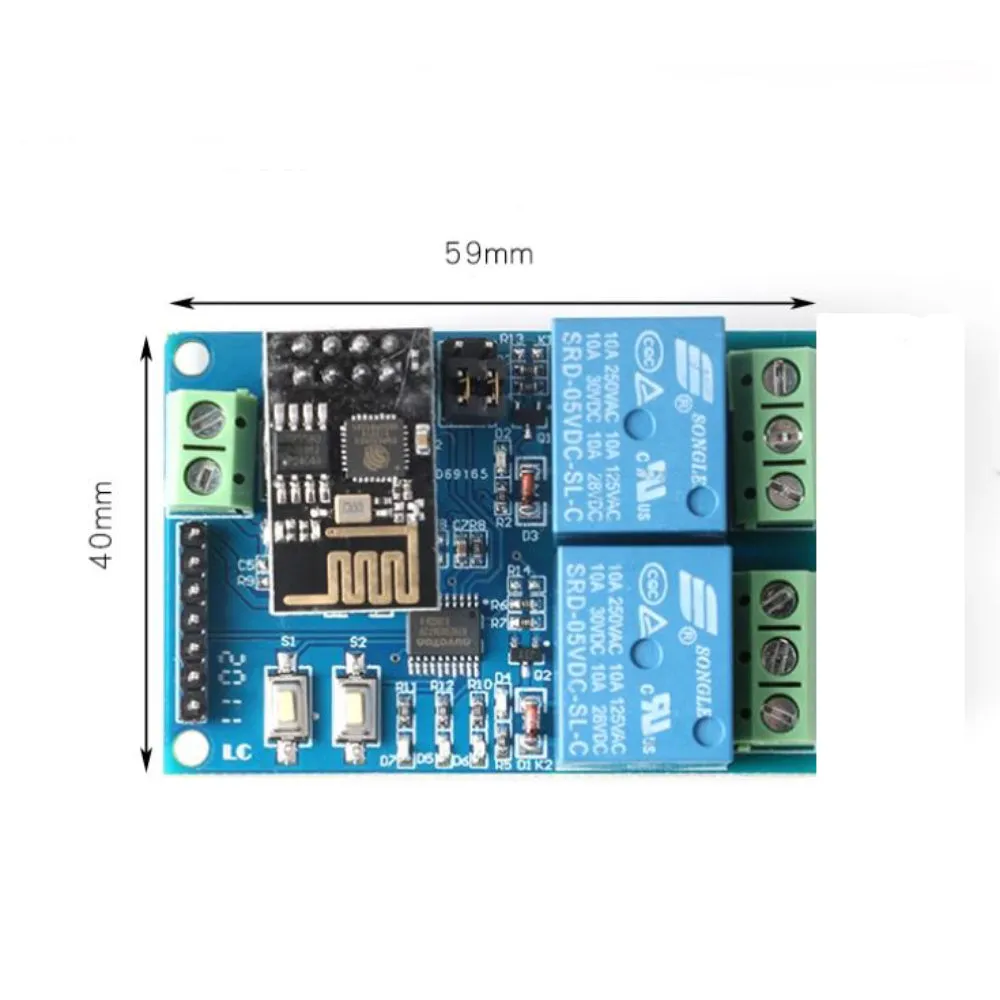

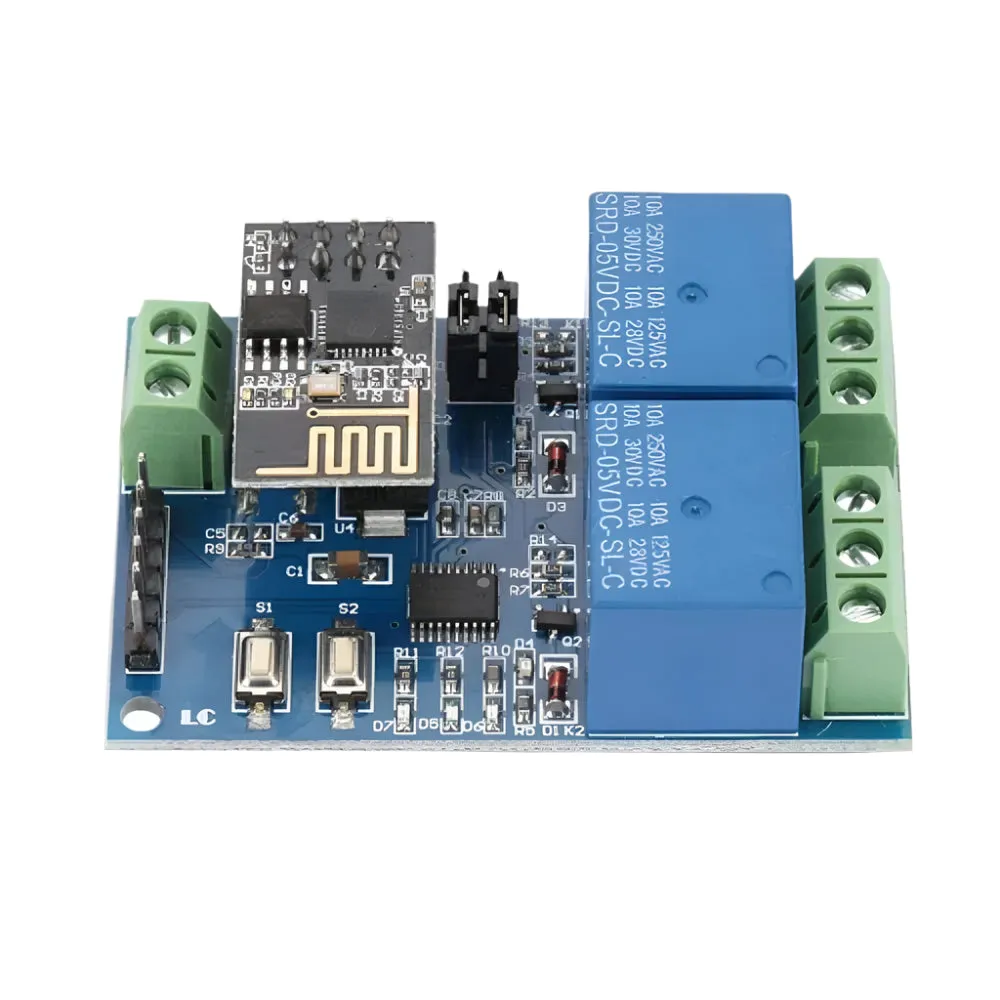

Name: ESP8266 ESP-01 5V 2 Channels WiFi Relay Module Home Remote Control Switch
SKU: 2285420

Relay Control: Supports up to 250V AC and 30V DC on a single-channel relay.

Status Indicators: LED indicator lights up when a signal is received, with an audible click on relay activation.

UART Configuration: Initial setup is done via UART for full functionality, and after configuration, the module operates autonomously.

IoT Compatibility: Useful for Internet of Things (IoT) projects, offering easy integration into smart home and industrial systems.

Smart Config: Allows for WiFi account setup and memory through the “ESP Touch–Demo” app.

Durability: Features an onboard relay rated for over 100,000 cycles and includes diode discharge protection.

How to Use:

Powering the Module: Connect a 5V/1A power adapter to the IN and IN- terminals.

WiFi Setup: Install the ESP Touch–Demo app on an Android device to configure the WiFi SSID and password.

Relay Control: Use the Easy TCP–20 app for TCP control commands. Under the “SWITCH” function, configure the relay instructions and control names in HEX format for seamless relay management.
