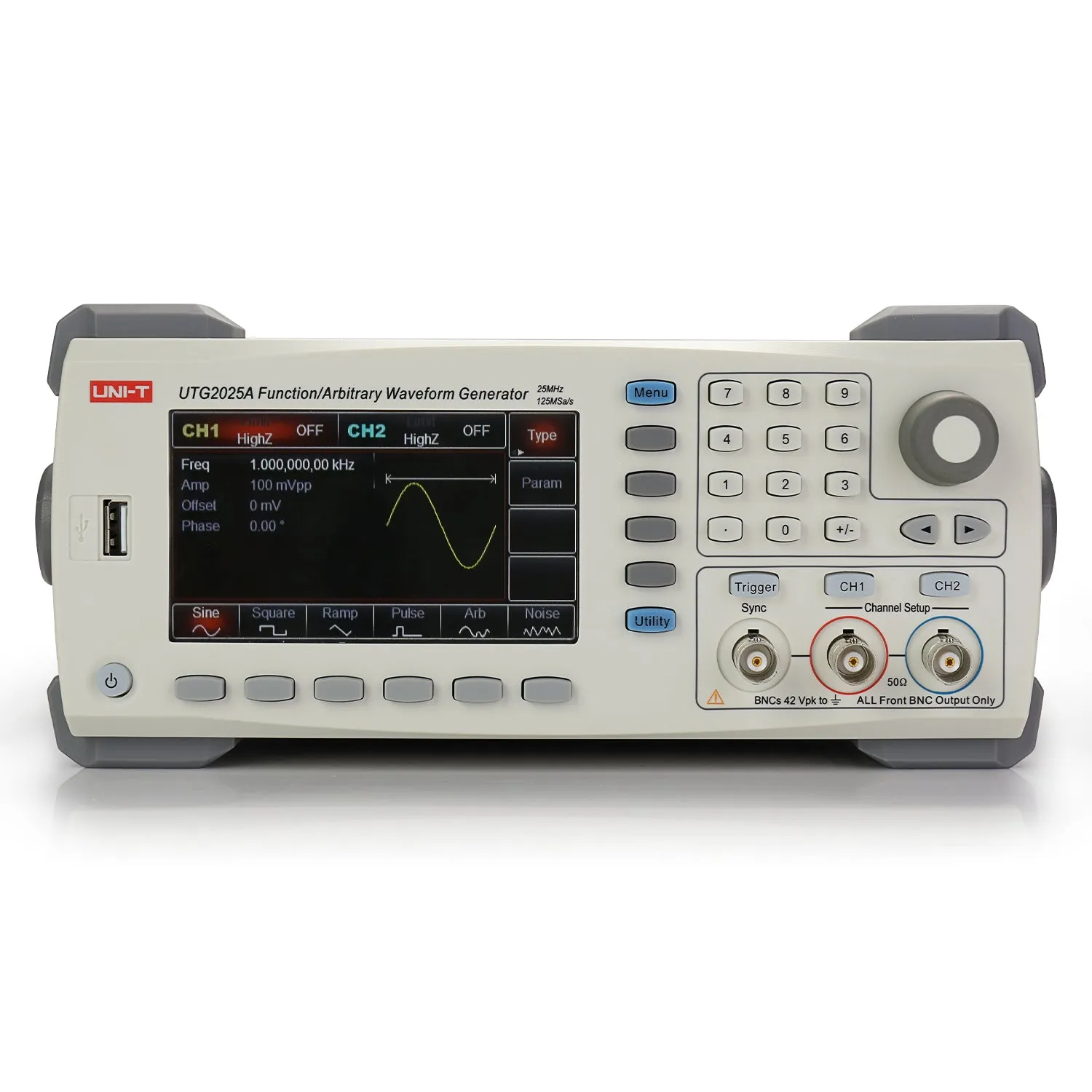

UNI-T UTG2025A Function/Arbitrary Waveform Generator is an ideal tool for designing, testing, troubleshooting, and repair of electronic and electroacoustic devices, such as circuit and equipment testing in cellular, wireless, broadcasting, television and radio systems or semiconductor component testing. A built-in USB interface allows the device to be connected to a PC or other device via the included USB-A cable to make testing even more convenient.

Features

• 1μHz full-band resolution
• 5MHz~30MHz pulse waveform, adjustable rise/fall time
• 14-bit/16-bit vertical resolution
• Two equivalent-performance channels
• Max arbitrary waveform length of 8k/16M points; 48/161
• Non-volatile waveforms storage

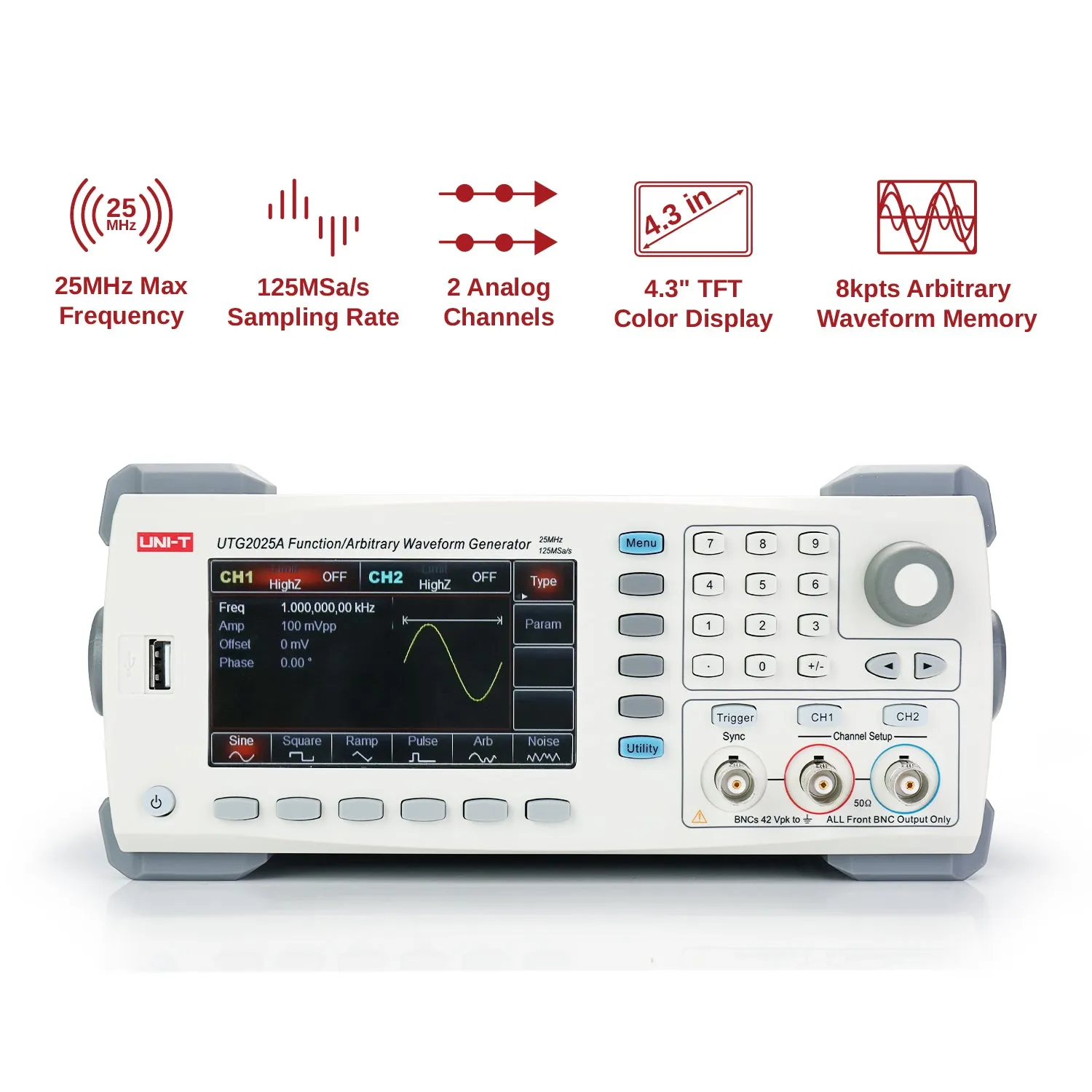

Specification

• Max frequency: 25MHz
• Channels: 2
• Sampling rate: 125MS/s
• Waveforms: Sine, square, ramp, pulse, noise, DC, arbitrary; UTG2000B only: harmonic
• Working modes: Output on/off, continuous, modulation, sweep, burst
• Modulations: AM, FM, PM, ASK, FSK, PSK, PWM; UTG2000B only: BPSK, QPSK, OSK, DSB-AM, SUM, QAM
• Length: 8pts~8kpts
• Vertical resolution: 14 bits
• Sine: 1μHz~25MHz
• Square: 1μHz~5MHz
• Pulse: 1μHz~5MHz
• Ramp: 1μHz~400kHz
• Arbitrary: 1μHz~5MHz
• Noise: 25MHz (-3dB)
• Resolution: 1μHz
• Accuracy: ±0.5ppm 25℃
• First-year aging rate: 1ppm
• Temperature coefficient: ±0.5ppm/℃
• Temperature Coefficient: ＜2ppm/℃

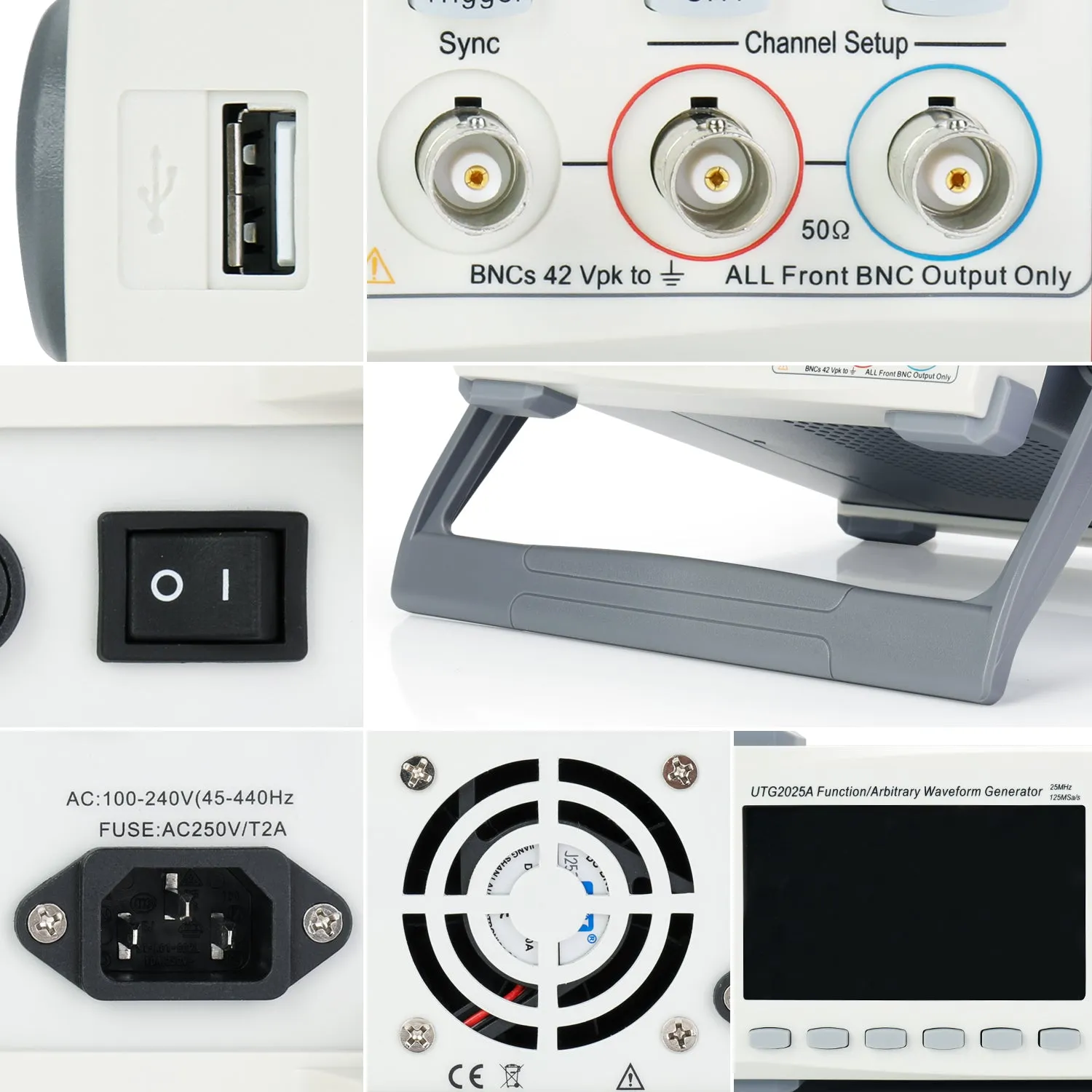

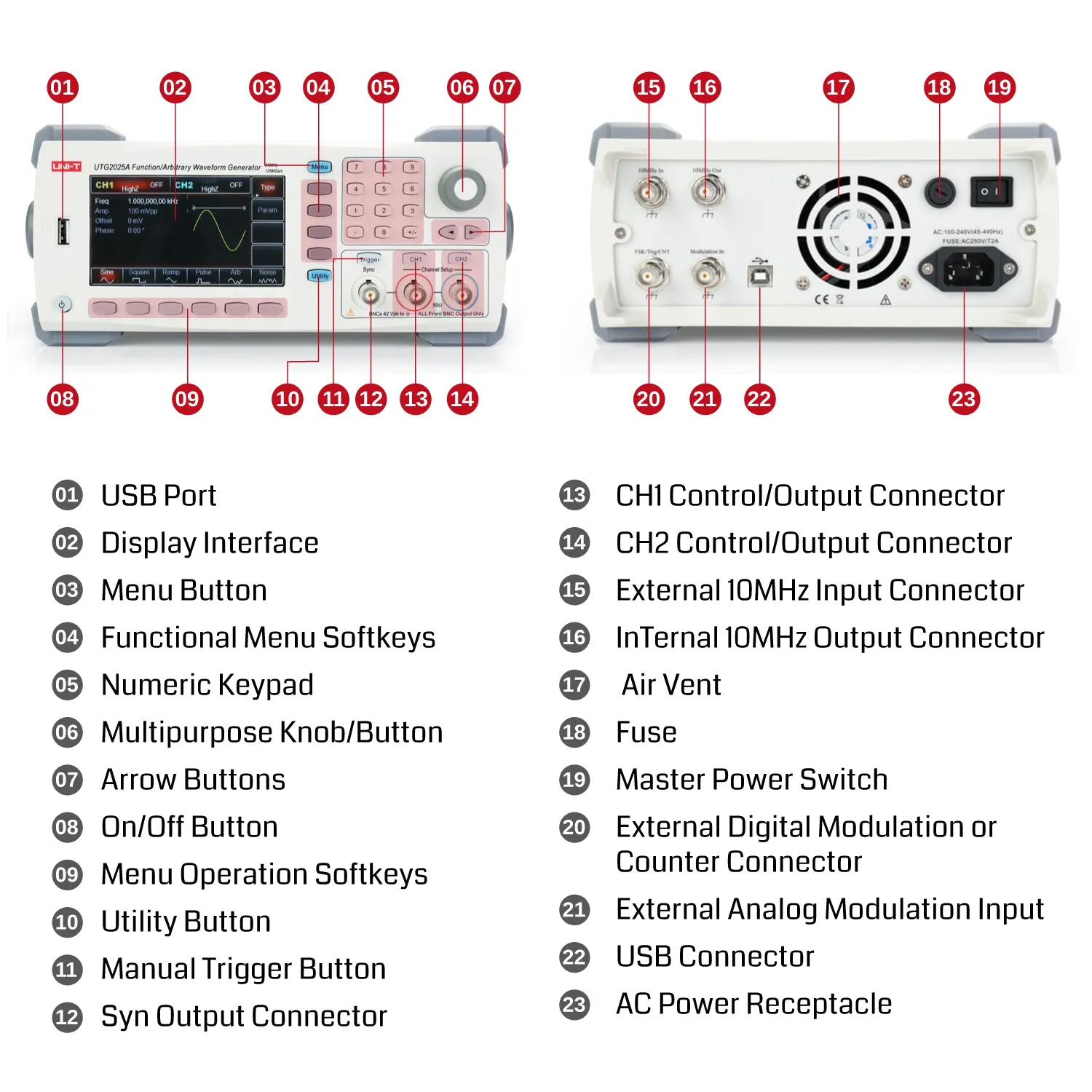

• Interfaces: USB Host, USB Device, frequency counter
• Power: 100V~240V ACrms, 50Hz/60Hz
• Display: 4.3-inch TFT LCD, WVGA (480 x 272)
• Product color: White and grey
• Product net weight: 3.2kg

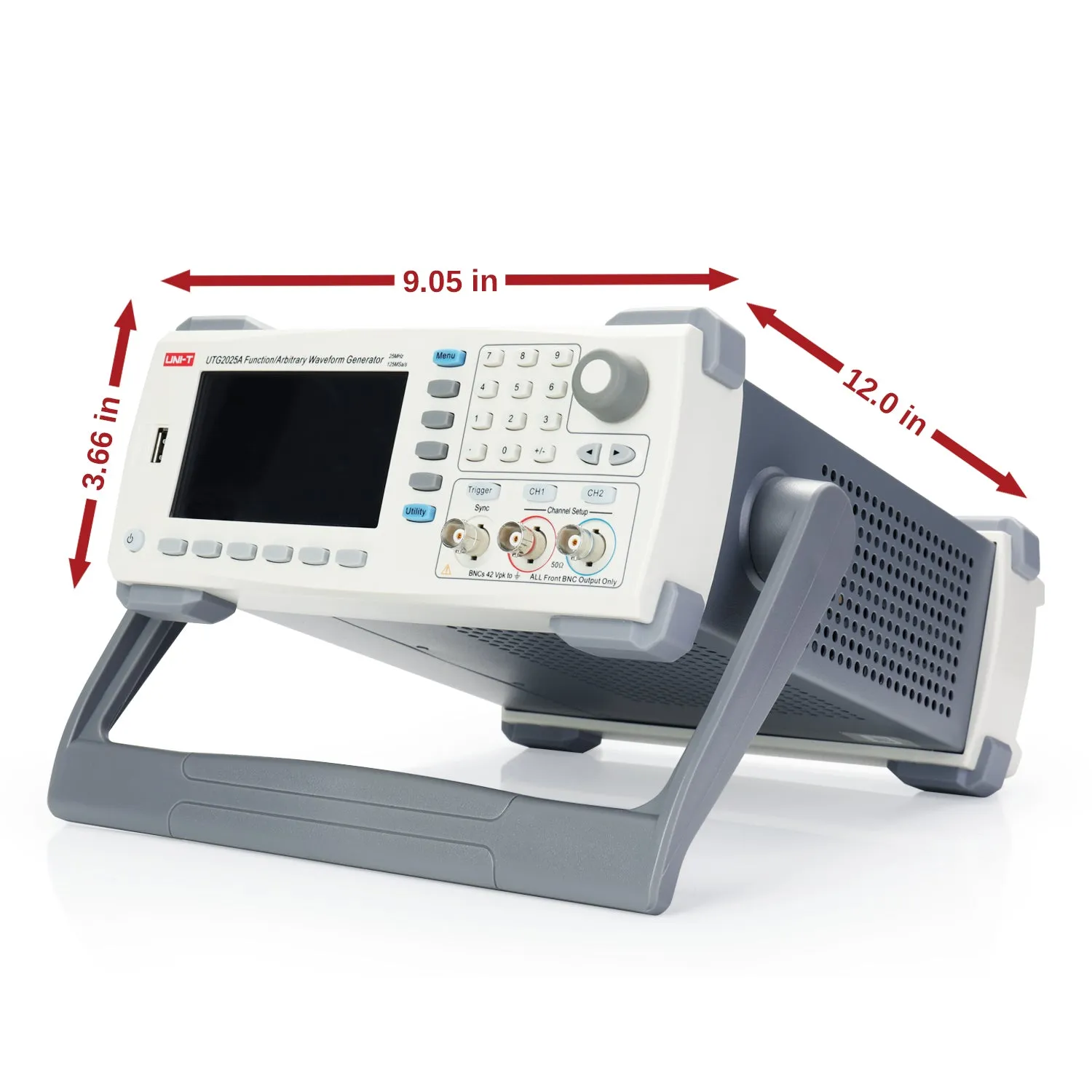

• Product size: 265mm x 110mm x 320mm(10.4 x 4.3 x 12.6 inch)

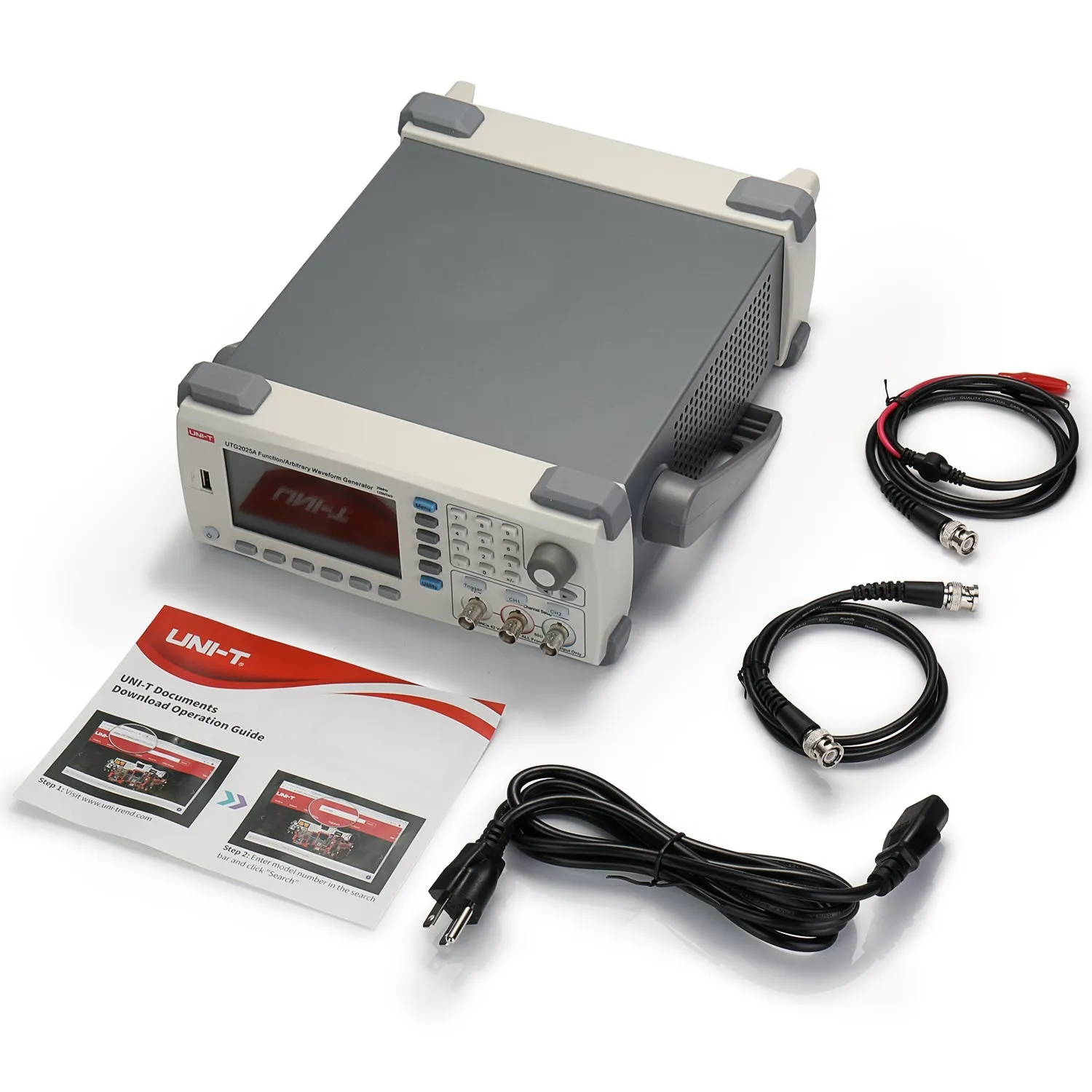

• Standard accessories: BNC-BNC cable, BNC cable with alligator clips, power cord, USB interface cable, PC software CD

Package List

• 1 x UNI-T UTG2025A Function/Arbitrary Waveform Generator
