About:

This patch cord is designed for optical fiber communication systems, providing a means to connect different devices or network components.

Also Known As:

• LC Duplex Fiber Optic Patch Cable
• Push-Pull LC Fiber Optic Cable
• Opti-Core Fiber Patch Cord

Common Applications:

• Data Centers: For connecting servers, switches, and storage devices.
• Telecommunications: In telecom racks for managing fiber connections.
• High-Speed Broadband Networks: Useful in internet service provider (ISP) setups.
• Office Networks: For connecting workstations or in server rooms.
• Audio-Visual Applications: Where high-quality, interference-free signal transmission is required.

Standards:

• ISO/IEC Standards: Ensuring international quality and performance benchmarks.
• TIA/EIA Standards: Compliance with telecommunications industry standards.
• RoHS Compliance: Ensuring the cord is free from certain hazardous materials.

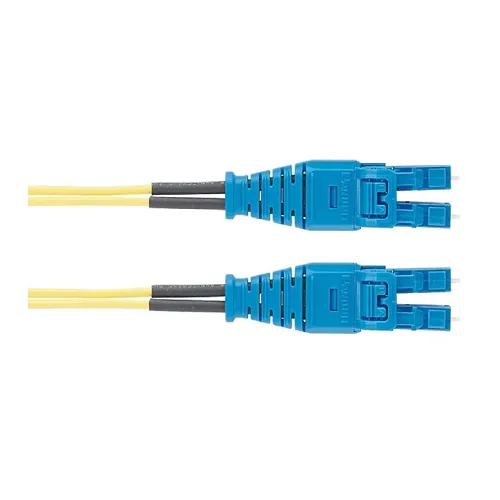

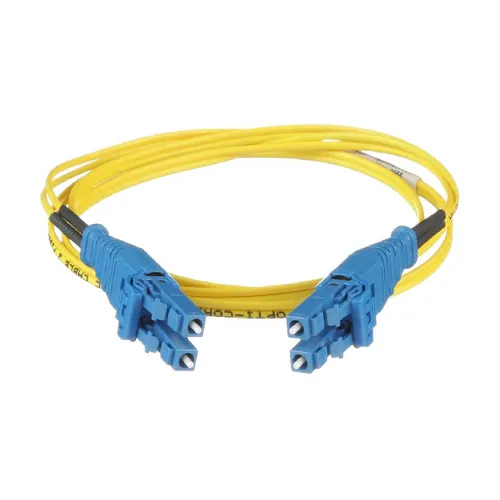

Construction:

• Connectors: LC push-pull connectors for easy and secure attachment.
• Core: 2 fiber cores for duplex communication.
• Length: 1 meter, suitable for short-range connections.
• Optical Fiber Type: Likely to be single-mode (OS1/OS2) given the application and standards.
• Jacket Material: Typically made from a durable material like PVC or LSZH (Low Smoke Zero Halogen) for protection and safety.

Features:

• Easy Handling: Push-pull mechanism for easy installation and removal.
• High-Speed Data Transmission: Suitable for gigabit networks and beyond.
• Low Signal Loss: High-quality fibers ensure minimal attenuation.
• Compact Design: LC connectors are small, saving valuable space in crowded areas.
• Versatility: Can be used in various network environments due to its standard compliance and construction.

Specification:
